TimeClocks and NeoPlugs are modeled as a select entity in Home Assistant.

TimeClocks

  • Mode:
    • Auto - follow the set profile

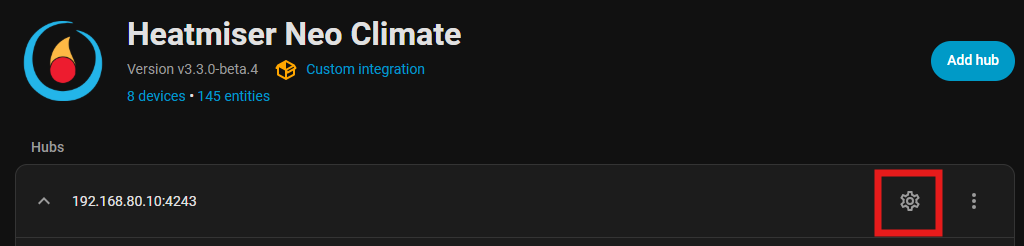

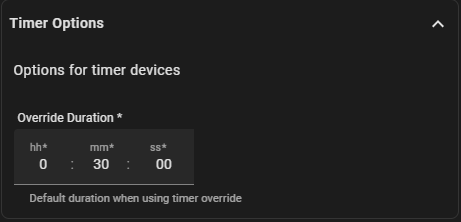

    • Override On - ignore the profile and turn the output ON for 30 minutes. Return to Auto once the duration has passed. (The default override duration can be configured using Configure on the hub entry)
    • Override Off - ignore the profile and turn the output OFF for 30 minutes. Return to Auto once the duration has passed. (The default override duration can be configured using Configure on the hub entry)
    • Standby - ignore the profile, output is permantently off
    • Away - ignore the profile. Output is off (If a holiday is set instead, Away will still be displayed but the device will go back to auto at the end of the holiday)
  • Active Profile - Can select a different profile for the thermostat.
    • PROFILE_0 is a special profile when the profile is managed directly on the thermostat rather than a shared profile managed in the hub
  • Profile Next Time - The next time there is a state change managed by the profile
  • Profile State - The profile’s current state. There is no next state sensor since it is just the opposite of the current state

  • Lock - Lock or unlock the keypad on a thermostat. Use the standard lock.lock service if you want to set a new pin number

    INFO

    NOTE: Profile entities are only relevant if the hub is not in non-programmable mode

    WARNING

    NOTE: Setting any timeclock to Away will change all thermostats and timers to Away

NeoPlug

NeoPlugs are similar to TimeClocks, but have the ability to be set to ON or OFF indefinitely

  • Auto - follow the set profile
  • On - profile disabled. Output is ON indefinitely
  • Off - profile disabled. Output is OFF indefinitely
  • Override On - ignore the profile and turn the output ON for 30 minutes. Return to Auto once the duration has passed. (The default override duration can be configured using Configure on the hub entry)
  • Override Off - ignore the profile and turn the output OFF for 30 minutes. Return to Auto once the duration has passed. (The default override duration can be configured using Configure on the hub entry)

Helper Sensors/Entities

  • Hold Time Remaining - If a hold/override is active, displays the number of minutes left
  • Output - shows if the output is on or off

Diagnostic Entities

  • Hold Active - shows if a hold is in place
  • Standby - if the device is in standby
  • Away - if the hub is away or on holiday
  • Device Temperature - NeoStats in TimeClock mode still have access to the temperature
  • Identify - A button to flash the screen of a NeoStat in TimeClock mode
